PC Components/micro SIM Extender

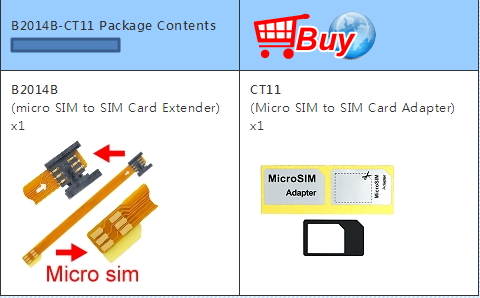

B2014B-CT11
  • micro SIM to SIM Card Extender
manufacture:Bplus

B20 V1.0 Micro SIMcard Extender is a debug and test tool. Design the FPC cable for flexible use.
It allows a SIM Card to be extended from the host slot for SIM interface.
It’s especially designed to save valuable labor and time in the production environment. The SIM extender is designed to minimize the signal degradation effects of the extender by proven design techniques.
It’s also a powerful tool for engineers,or use for mobile phone SIM test protection.

B20 V1.1 Micro SIM card Extender is a debug and test tool especially for iPhone4, iPhone4S iPad2 and New iPad (3rd Generation). Design the FPC cable for flexible use.

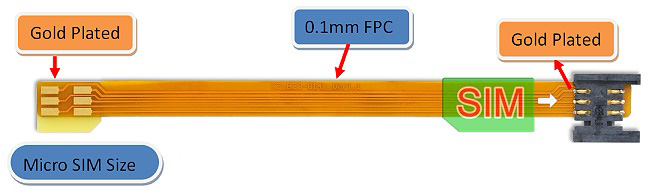

It allows a Micro SIM Card to be extended from the host slot for SIM interface. As thickness of FPC is 0.1mm, KZ-B20 can be routed through narrow slit between body and cover case.
It’s especially designed to save valuable labor and time in the production environment. The SIM extender is designed to minimize the signal degradation effects of the extender by proven design techniques.
It’s also a powerful tool for engineers,or use for mobile phone SIM test protection.






B2014B-M Total length 14CM

Documents Download
Brief V1.1   Taiwan   Taiwan 2 Mirror   China Mirror
Brief V1.0   Taiwan   Taiwan 2 Mirror   China Mirror
B2014B Dimension   Taiwan   Taiwan 2 Mirror   China Mirror
B2014B 3D Model   Taiwan   Taiwan 2 Mirror   China Mirror
B2040A 3D Model   Taiwan   Taiwan 2 Mirror   China Mirror
Schematic   Tawan   Taiwan 2 Mirror   China Mirror
Selection Guide   Tawan   Taiwan 2 Mirror   China Mirror
