PC Components/mPCIe Extender/Apapt

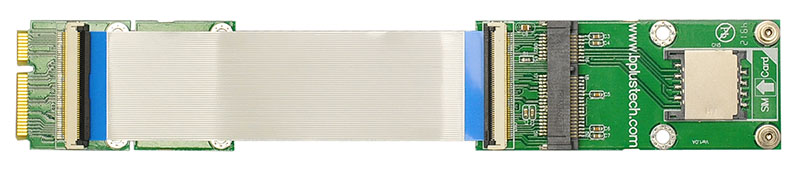

P22S-P22F-SIM
  • (mini PCI Express / MiniCard Extender)
manufacture:Bplus

Introduction:
P22S-P22F mPCIe Extender is a debug and test tool. Design the FFC (Flat Flexible Cable) cable for flexible use.
Not only for Full-size MiniCard adapter but also Half-size MiniCard by removing extra Full-size extensions.
The mPCI-Eextender is designed to minimize the signal degradation effects of the extender by proven design techniques.
It’s also a powerful tool for engineers and factory tests.



P22S-P22F (KZ-B22)

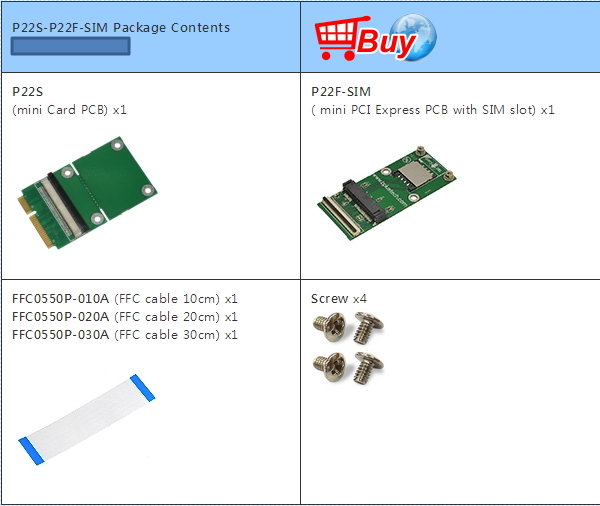

P22S-P22F-SIM (KZ-B22-S)










Documents Download
Brief   Taiwan   Taiwan 2 Mirror   China Mirror
Dimension   Taiwan   Taiwan 2 Mirror   China Mirror
3D Model  Taiwan 1  Taiwan 2 Mirror  China Mirror
Schematic   Tawan   Taiwan 2 Mirror   China Mirror
Selection Guide   Tawan   Taiwan 2 Mirror   China Mirror
