P34SF-SATA

Introduction:

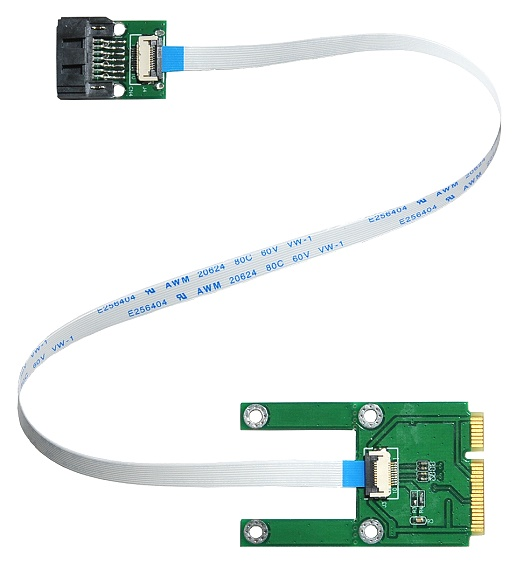

P34SF-SATA Extender is a debug and test tool to extend SATA port from Mini SATA (mSATA). Design the FFC (Flat Flexible Cable) cable for flexible use.

Not only for Full-size Mini SATA slot but also Half-size Mini SATA by removing extra Full-size extensions.

The extender is designed to minimize the signal degradation effects of the extender by proven design techniques. It’s also a powerful tool for engineers and factory tests.

manufacture:Bplus

Function:

Allows user to use standard SATA hard device to SATA-IO mSATA slot in the Desktop or Laptop
Transparent to the operating system and does not require any software drivers
FFC Cable: Width 6mm, Thickness 0.1mm

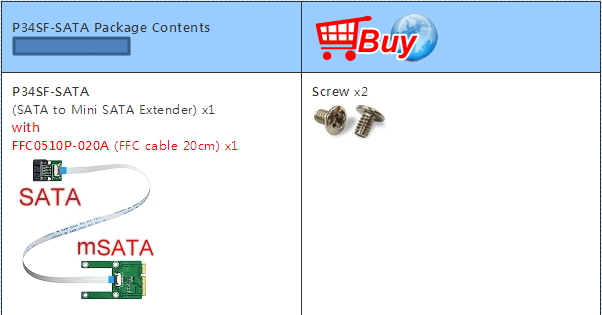

P34SF-SATA (KZ-B34-SATA) :FFC cable length 20cm ,Width 6mm, Thickness 0.1mm

Specification:

Serial ATA I/O: Serial ATA Revision 3.1 Compliant

Requirements:

mSATA slot

Notice:
This adapter is engineering test tools. NOT for home or office use.
The Products just only support mSATA slot, Can’t support PCI express minicard, Can’t support Apple MacBook Air SSD Card.
