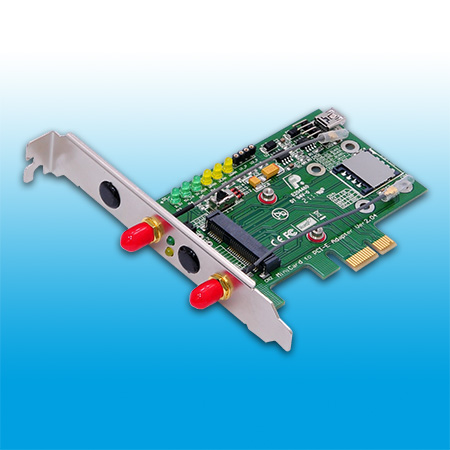

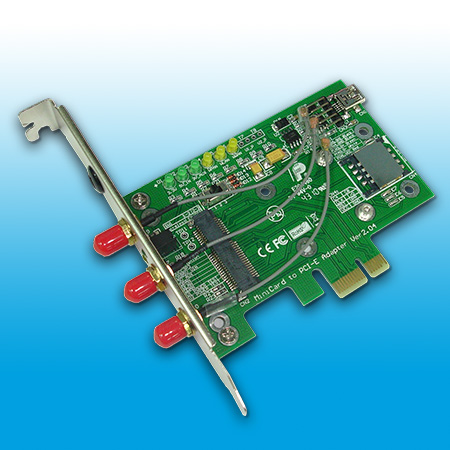

MP2A-SMA

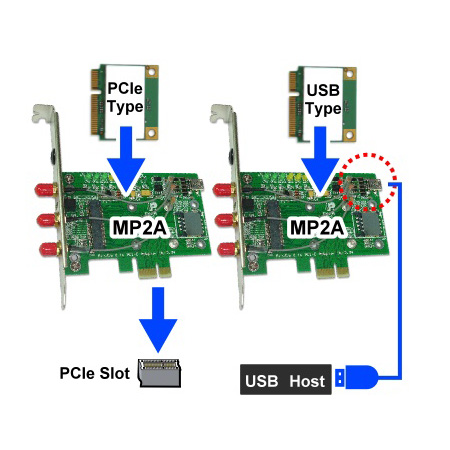

  • The MP2A passive adapter is designed for desktop PCs that convert Mini-Card to USB port or standard PCI-Express 1x slot.
  • You can insert your USB type minicard to this adapter then plug to USB port through USB cable.
  • Or insert your PCI-E type mini-card into this adapter then insert to PCI-E 1x connector .
manufacture:Bplus

   Features


  • PCI Express Mini Card to PCI express 1x converter.
  • Allows user to test PCI Express Mini modules on the PCI Express slot.
  • Supports two primary system bus interface: PCI Express and USB.
  • Supports all of Mini-Cards such as 3G,CDMA, WLAN,WWLAN, Mini Card to desktop PC.

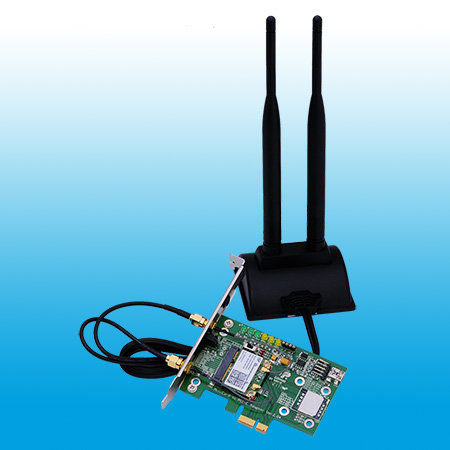

  • Supports U.FL/IPX to RP- SMA pigtail WiFi RF cable adapter. (Optional)

Notice


  • There are existing mPCIe 'form factor' SSD's that present SATA and PATA interface, but none that use the standard mPCIe pinout (i.e. mPCIe tx/rx pins). ...
  • MP2A support standard mPCIe minicard. Can’t support custom SATA/PATA SSD minicard.

  Specification


  • PCI Express Mini Card to PCI Express/USB adapter.
  • PCI Express Mini Card Electromechanical Specification Revision 1.2
  • PCI Express Card Electromechanical Specification 1.1
  • Universal Serial Bus Specification Revision 2.0
  • Standard Height PCI Express Add-in Card.
  • Low Profile PCI Express Add-in Card.
  • Full/ Half -Mini Card dimension.
  • SIM Connector for CDMA HSDPA/HSUPA, UMTS, GSM, GPRS, EDGE
  • Wireless Disable/Enable switch
  • WPAN, WLAN, WWAN, VCC3, VCC5, VCCaux LEDs





Brief   Taiwan 1   Taiwan 2 Mirror   China Mirror
Dimension   Taiwan 1   Taiwan 2 Mirror   China Mirror
Schematic   Taiwan 1   Taiwan 2 Mirror   China Mirror
User manual   Taiwan 1   Taiwan 2 Mirror   China Mirror
PCIE WiFiCardsSelection Guide Taiwan 1 Taiwan 2 China
