Outdoor/ODA

ODA

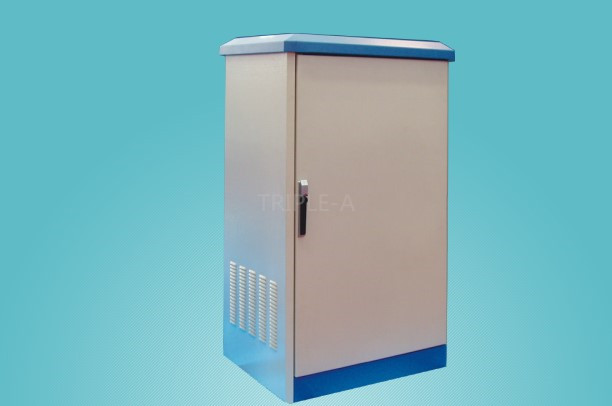

The cabinet adopts the double wall type design. It is composed with main body, roof, the rear panel, the side panel and the base

The double wall type rear panel, the dual side panel, the bolts are fixed by inside. The double wall type gate has the bikini fixing device, after closes the gate not to be able to see the bolt from outside. Leans the kneading board to cover the cabinet and the foundation, eliminated entered the cabinet by the compulsory measure weakness

Inside and outside side kneading board (spacing 25 mm) the band provides ventilates the channel, supports the cabinet internal heat change and may reduce the sunlight illumination the influence.

The roof panel has the rain awning with the size all around stretches out 25mm and 75mm high. Which have the integrity well ventilated to clamp the trough and ensuring the exchanging of seal

manufacture:Cabinet

01.The base may use the entire block or divide three parts of sealed panel to seal.

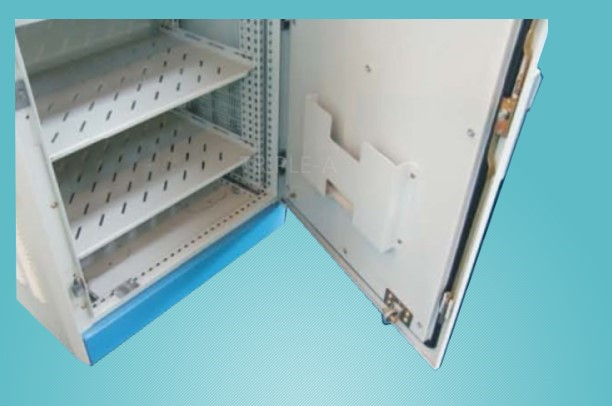

02.The cabinet can adopt 19inch structure to install , it can install the mounting panel or according to the custom

design also.

03.The natural wind cooling: the cabinet can install fans on the top cover and punch the hole with dustproof

cover at the bottom of two sides.

04.Protection rank: IP55 EN60529/10.91

05.We can design the structure as the customer requirement.

Item NO.	Width(mm)	Depth(mm)	Height(mm)	Color
ODA-8614	800	600	1375	Black
ODA-8614	800	600	1375	Beige
ODA-8814	800	800	1375	Black
ODA-8814	800	800	1375	Beige
ODA-8616	800	600	1575	Black
ODA-8616	800	600	1575	Beige
ODA-8816	800	800	1575	Black
ODA-8816	800	800	1575	Beige
