Cabinet/FC

Specification:

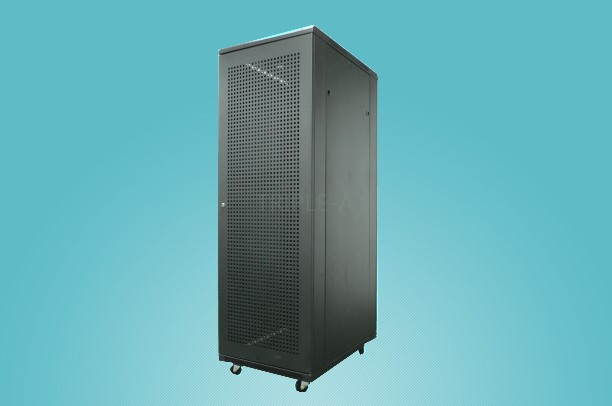

Constructed of heavy-duty steel for the ultimate server rack strength and stability Store servers, network and telecommunications equipment securely in this 19" solid steel rack

Reliable, space-saving solutions designed for organizing and securing server and networking applications. Suited for server rooms, wiring closets,manufacturing areas, warehouses, or anywhere where networking equipment needs to be protected. Ideal for housing LAN, WAN, phone, and voice mail equipment.

This modular cabinet helps save space in the server room and is designed to suit any server room footprint design, while housing any standard 19in rackmount equipment.

To help optimize ventilation, the cabinet offers steel mesh doors with wide perforation, and includes an integrated cable management system that helps keep the inside of the cabinet neat. Plus, the rack rail spacing is clearly marked, making it easy to plan and install equipment within the cabinet.

Includes lockable front and rear doors, and dual lock side doors

Front and rear doors easily removable and reversible

All steel, welded frame construction

Ships fully assembled

Sturdy, attractive, and secure server space

Arrives fully assembled and ready to go to work in your data center.

Removable side panels.

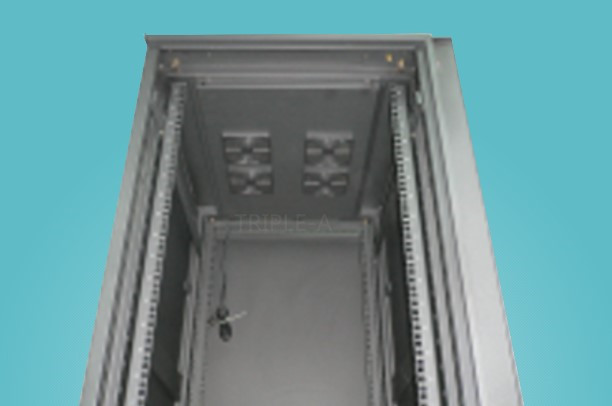

Vented top panel.

Generous cable access.

manufacture:Cabinet

Packing :

Product're wrapped with plastic wrap and PU foam inside to protect the corner areas.

Top panel & front door are protected by Styrofoam or PU plate. Thick & High Quality carton or wooden box.

label on product.

Buyer can choose OEM or our standard:

We can manufacture the cabinet according to the customer special requirements also.

Color of Rack: Black / Beige or other color like Blue / Yellow / Red / Orange

More fan, Side panel of luck, W/O side panel etc….

Please contact with us if you like to change anything for other parts

and make sure your order, also we have many difference type for your any new idea.

Item	Height	Number	Width(mm)	Depth(mm)
FC	47U	FC-6647	600	600
FC	47U	FC-6847	600	800
FC	47U	FC-6947	600	900
FC	47U	FC-6047	600	1000
FC	47U	FC-8647	800	600
FC	47U	FC-8847	800	800
FC	47U	FC-8947	800	900
FC	47U	FC-8047	800	1000
FC	42U	FC-6642	600	600
FC	42U	FC-6842	600	800
FC	42U	FC-6942	600	900
FC	42U	FC-6042	600	1000
FC	42U	FC-8642	800	600
FC	42U	FC-8842	800	800
FC	42U	FC-8942	800	900
FC	42U	FC-8042	800	1000
FC	37U	FC-6637	600	600
FC	37U	FC-6837	600	800
FC	37U	FC-6937	600	900
FC	37U	FC-6037	600	1000
FC	37U	FC-8637	800	600
FC	37U	FC-8837	800	800
FC	37U	FC-8937	800	900
FC	37U	FC-8037	800	1000
FC	32U	FC-6632	600	600
FC	32U	FC-6832	600	800
FC	32U	FC-6932	600	900
FC	32U	FC-6032	600	1000
FC	32U	FC-8632	800	600
FC	32U	FC-8832	800	800
FC	32U	FC-8932	800	900
FC	32U	FC-8032	800	1000
FC	27U	FC-6627	600	600
FC	27U	FC-6827	600	800
FC	27U	FC-6927	600	900
FC	27U	FC-6027	600	1000
FC	27U	FC-8627	800	600
FC	27U	FC-8827	800	800
FC	27U	FC-8927	800	900
FC	27U	FC-8027	800	1000
FC	22U	FC-6622	600	600
FC	22U	FC-6822	600	800
FC	22U	FC-6922	600	900
FC	22U	FC-6022	600	1000
FC	22U	FC-8622	800	600
FC	22U	FC-8822	800	800
FC	22U	FC-8922	800	900
FC	22U	FC-8022	800	1000
FC	18U	FC-6618	600	600
FC	18U	FC-6818	600	800
FC	18U	FC-6918	600	900
FC	18U	FC-6018	600	1000
FC	18U	FC-8618	800	600
FC	18U	FC-8818	800	800
FC	18U	FC-8918	800	900
FC	18U	FC-8018	800	1000
